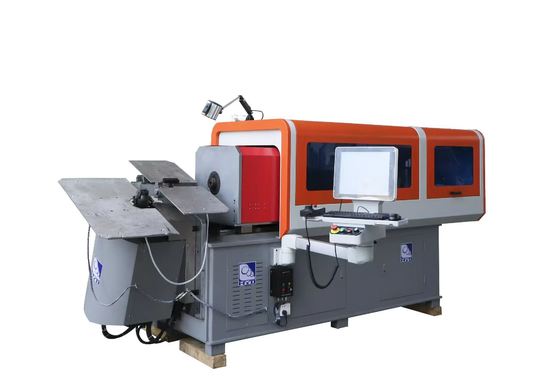

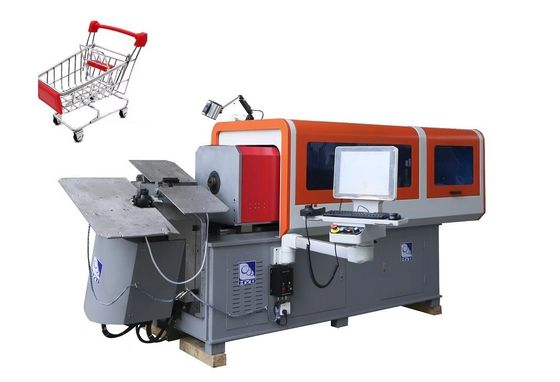

Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing

Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing

  • Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
  • Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
  • Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
  • Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
  • Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
  • Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: HYD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt
Ausführliche Produkt-Beschreibung
Gewicht: 3600 kg Stromspannung: 380 v
Leistung: 20,8-26,5 kW Drahtgröße: 3,0-10,0 mm TS ≤ 500N
Servo -Motoren: 8-10 Achsen Steuerungssystem: Dedizierter CNC -Computer
Maximale Draht Zufuhr: 10000,0 mm Min Drahtverfügung: 00,01 mm
Max Wire Speed: >70 m/min Luftdruck: 5–6 kg/cm²
Probezahl: 2 Maschinengröße: L3800*B1100*H1680 MM
Motormarke: Sanyo/Yaskawa Stromversorgung: 3phase, 380V
Längen der Drahtzufuhr: unbegrenzt
Hervorheben:

8-10axes Servo Motors 3D Wire Bending Machine

,

3.0-10.0mm Wire Size Wire Bending Machine

,

20.8-26.5kw Power CNC Wire Bender

High Quality Wire Type 3D Wire Bending Machine for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 0 Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 0
Technical Specifications
Model HYD-WR9A-100 HYD-WR10A-100 HYD-WR10A-80
Wire Size φ3.0-φ10.0mm TS≤500N φ3.0-φ10.0mm TS≤500N φ2.0-φ8.0mm TS≤500N
Servo Motors 9 axes 10 axes 10 axes
Control System Dedicated CNC Computer Dedicated CNC Computer Dedicated CNC Computer
Motor Brand Sanyo/Yaskawa Sanyo/Yaskawa Sanyo/Yaskawa
Max Wire Feed 10000.0mm 10000.0mm 10000.0mm
Min Wire Feed 0.01mm 0.01mm 0.01mm
Max Wire Speed >70m/min >70m/min >60m/min
Wire Feed Length unlimited unlimited unlimited
Power 3phase, 380V 3phase, 380V 3phase, 380V
Air Pressure 5-6KG/CM² 5-6KG/CM² 5-6KG/CM²
Probe 2 2 2
Machine Size L3800*W1100*H1680MM L3800*W1100*H1680MM L3800*W1100*H1680MM
Product Images

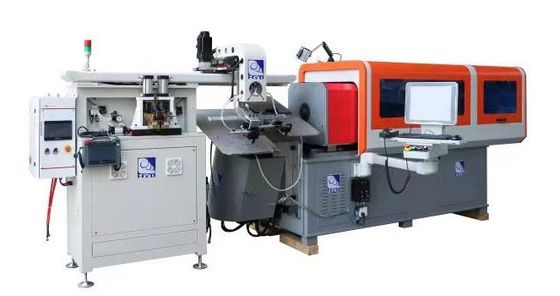

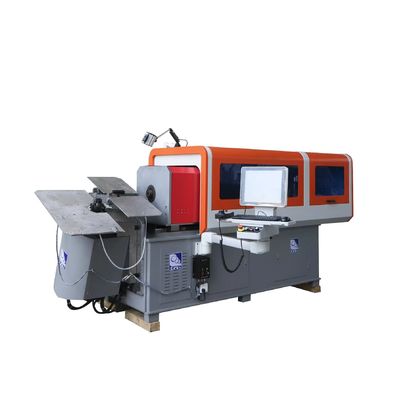

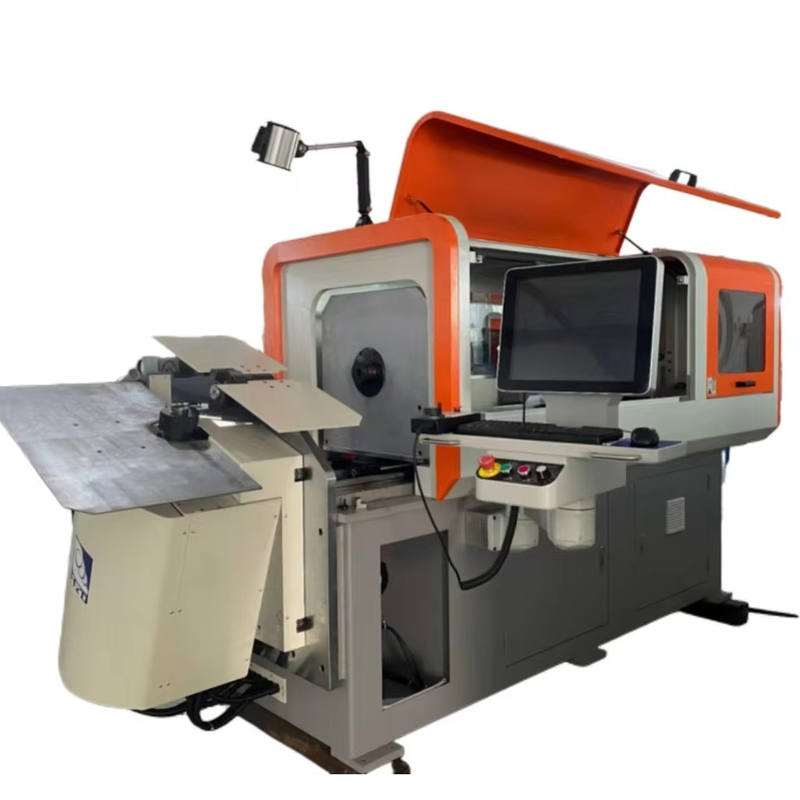

Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 2
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 3
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 4
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 5
Application Scenarios
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 6
Product Categories
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing 7
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements.
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
Q6: What is the power supply of the machine?
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q7: What is the payment term?
A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
Q8: What is the delivery time?
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
Q9: What is the guarantee period of the machine?
A9: The guarantee period is one year from the date of B/L.
Q10: What is the MOQ?
A10: One set. We will make the machine suitable for you according to your needs.
