HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power

HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power

  • HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power
  • HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power
  • HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power
  • HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power
  • HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power
  • HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power
HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: HYD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt
Ausführliche Produkt-Beschreibung
Gewicht: 8000 KG Stromspannung: 380 v
Leistung: 68,5 kW Drahtgröße: Kohlenstoffarmer Stahl: 5–10 mm, Kohlenstoffstahl: 3–8 mm
Servo -Motoren: 13 Achsen Max Wire Speed: 80 m/min
Drahtrolle: 4 Paare Maximaler Fehler: ±0,2 (Länge)
Blei Schiene: 210 mm Kürzeste Engelslänge: 4 -mal Drahtdurchmesser
Stromversorgung: 380 V ± 10%V50Hz Maschinengewicht: 8000 KG
Maschinengröße: L5500*B2200*H2400 mm Servoleistungsstärke: 68,5 KW
Motormarke: SANYO
Hervorheben:

13 Axes CNC Spring Machine

,

80m/min Max Wire Speed Spring Coiling Machine

,

68.5KW Power Computer Spring Machine

HYD-80T-13A 8mm High Quality Spring Machine Wire Forming Machine Camless Spring Machine
HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 0 HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 0
Product Specifications
Model HYD-80T-13A
Wire Size Low-carbon Steel: 5-10mm
High-carbon Steel: 3-8mm
Servo Motors 13 axes
Lead Rail tineraries 210mm
Wire Feed Roller 4 Pairs
Maximum error ±0.2(Length)
Max Wire Feed Speed 80m/min
Control System 1SET

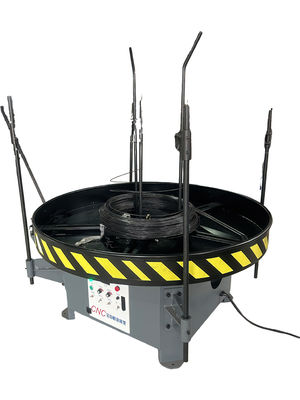

Decoiler 1000KG
Reducer 11PCS
Servo Motor Power 68.5KW
Motor Brand Sanyo
Shortest Angel Length 4 Times Wire Diameter
Power Supply 380V±10%V50Hz
Machine Dimension 8000KG
Machine Size L5500*W2200*H2400MM

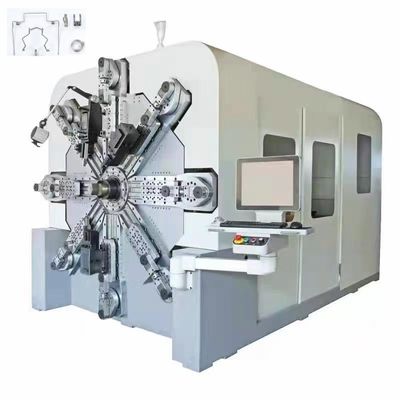

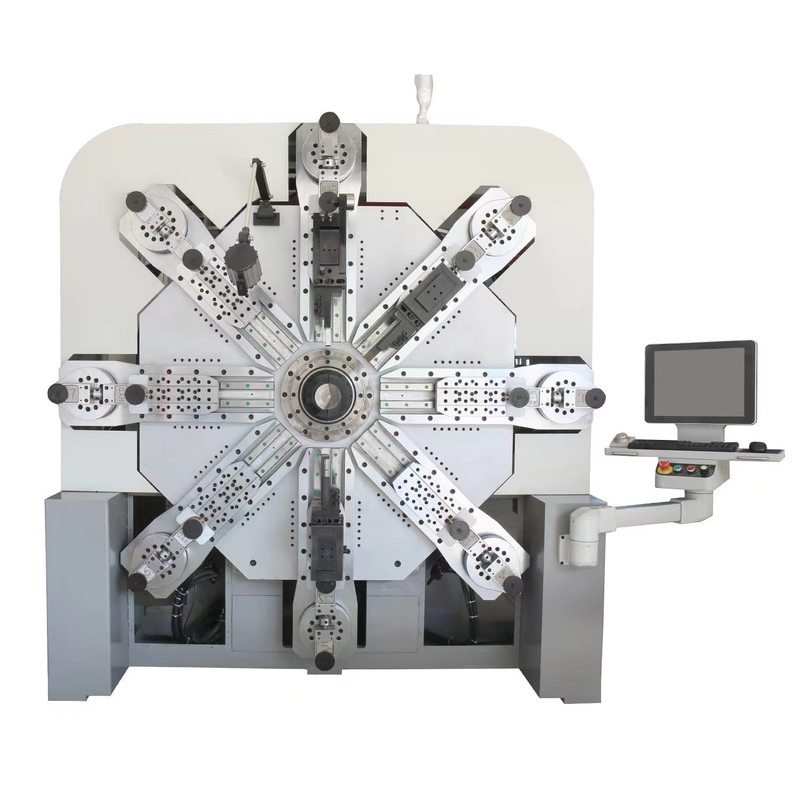

Product Images
HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 2 HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 3 HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 4 HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 5 HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 6

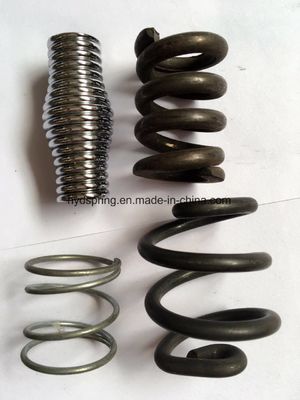

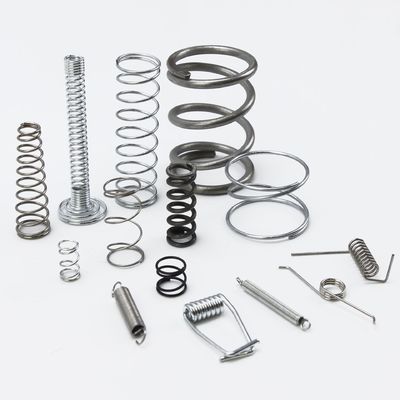

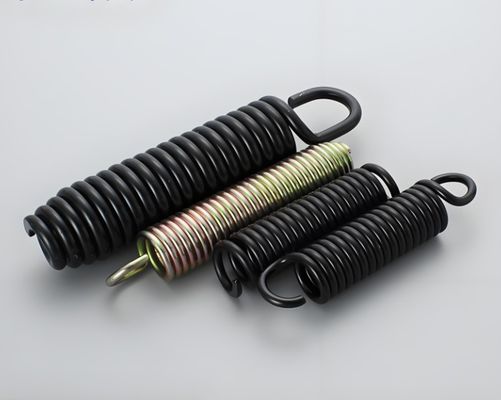

Application Scenarios
HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 7
Product Categories
HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power 8
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
Q6: What is the power supply of the machine?
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q7: What is the payment term?
A7: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.
Q8: What is the delivery time?
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.
Q9: What is the guarantee period of the machine?
A9: The guarantee period is one year from the date of B/L.
Q10: What is the MOQ?
A10: One set. We will make the machine suitable for you according to your needs
