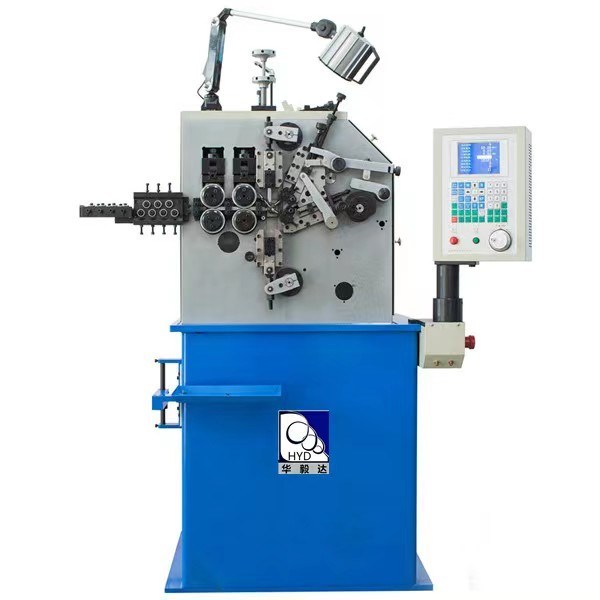

HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed

HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed

  • HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed
  • HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed
  • HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed
  • HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed
  • HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed
  • HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed
HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: HYD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt
Ausführliche Produkt-Beschreibung
Gewicht: 880 Kilogramm Stromspannung: 380 v
Leistung: 5.8 KW Drahtgröße: 00,4-2,0 mm
Servo -Motoren: 3 Achsen Max Wire Speed: 1000 m/min
Maximaler Außendurchmesser: 45 mm Drahtzuführmotor: 2,7 kW
Nockenmotor: 2,7 kW Pitch-Motor: 1,0 Kilowatt
Stromversorgung: 220V 3P 50/60Hz Maschinengewicht: 880 Kilogramm
Maschinengröße: 900*950*1600 mm Defiler -Kapazität: 60 kg
Steuerungssystem: 1 Set
Hervorheben:

0.4-2.0mm Wire Size CNC Spring Machine

,

3 Axes Servo Motors Compression Spring Machine

,

1000m/min Max Wire Speed Spring Coiling Machine

HYD-320 Compression Spring Machine 0.4-2.0mm Spring Coiling Machine
HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 0 HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 0
Product Specifications
Model HYD-320
Wire Size 0.4-2.0mm
Servo Motors 3 axes
Max Wire Feed Unlimited
Max Outside Diameter 45mm
Wire Feed Speed 1000m/min
Control System 1SET
Decoiler 60KG
Wire Feed Motor 2.7KW
Cam Motor 2.7KW
Pitch Motor 1.0KW
Power Supply 220V3P 50/60HZ
Machine Weight 880KG
Machine Size 900*950*1600mm

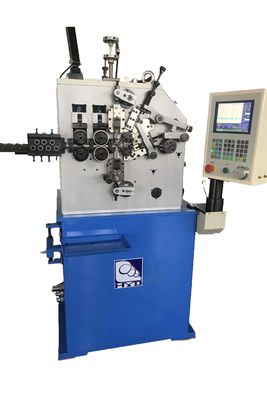

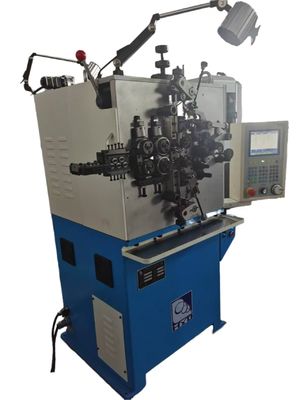

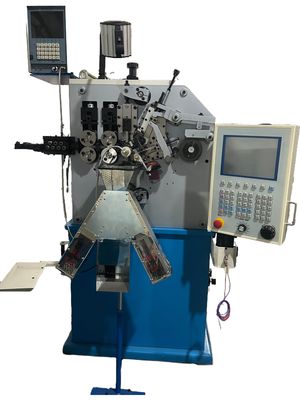

Product Images
HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 2 HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 2 HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 4 HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 4 HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 6 HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 6

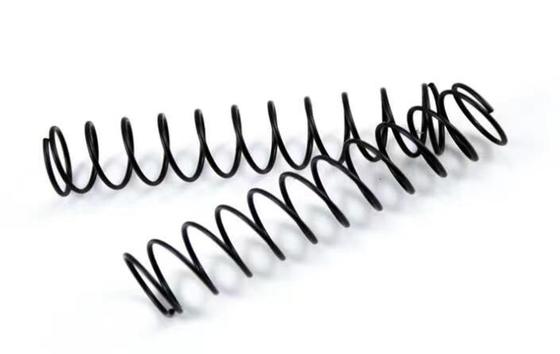

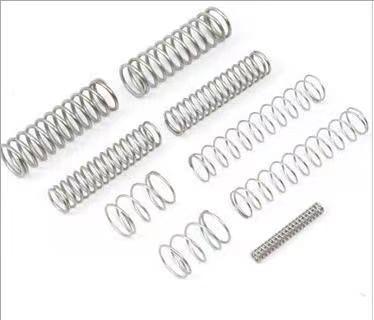

Application Scenarios
HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 8 HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed 8
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements.
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
Q6: What is the power supply of the machine?
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q7: What is the payment term?
A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
Q8: What is the delivery time?
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
Q9: What is the guarantee period of the machine?
A9: The guarantee period is one year from the date of B/L.
Q10: What is the MOQ?
A10: One set. We will make the machine suitable for you according to your needs.
