Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power

Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power

  • Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power
  • Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power
  • Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power
  • Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power
  • Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power
  • Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power
Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: HYD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt
Ausführliche Produkt-Beschreibung
Gewicht: 900 kg Stromspannung: 380 v
Leistung: 9.35 kW Drahtgröße: 0.3-2.5 Millimeter
Servo -Motoren: 10 Achsen Max Wire Speed: 110 m/min
Programmspeicherung: 1000 Blei Schiene: 80 mm
Drahtrolle: 2 Paare Maximaler Fehler: ± 0,03 (Länge)
Motormarke: SANYO Kürzeste Engelslänge: 4 -mal Drahtdurchmesser
Stromversorgung: 380V±10% 50Hz Decoiler: 300 kg
Maschinengröße: L1700*W1150*H1700 mm
Hervorheben:

110m/min Max Wire Speed CNC Spring Machine

,

1000 Program Storage Volume Computer Spring Machine

,

9.35kW Power Spring Coiling Machine

Precision Computer Spring Manufacturing Coiling Machine
Multi-Function Spring Forming Equipment
Product Specifications
Model HYD-25T-11A HYD-25T-12A
Wire Size 0.3-2.5mm 0.3-2.5mm
Servo Motors 10 axes 12 axes
Lead Rail tineraries 80mm tineraries 80mm
Wire Feed Roller 2 Pairs 4 Pairs
Maximum error ±0.03(Length) ±0.03(Length)
Max Wire Feed Speed 110m/min 110m/min
Motor Brand Sanyo Sanyo
Shortest Angel Length 4 Times Wire Diameter 4 Times Wire Diameter
Power Supply 380V±10%V50Hz 380V±10%V50Hz

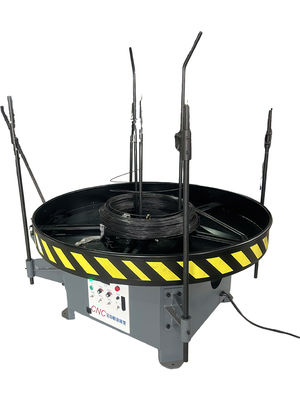

Decoiler 300KG 500KG
Machine Dimension 1000KG 1300KG
Machine Size L1700*W1150*H1700MM L1700*W1150*H1700MM
Product Images

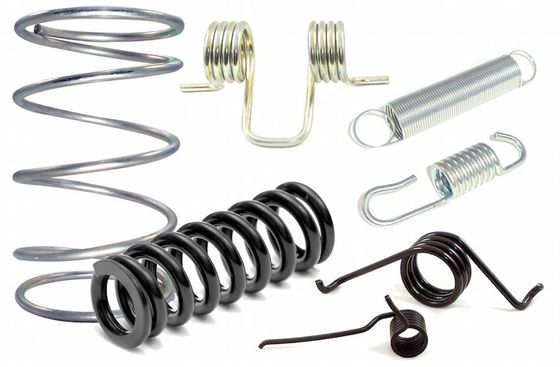

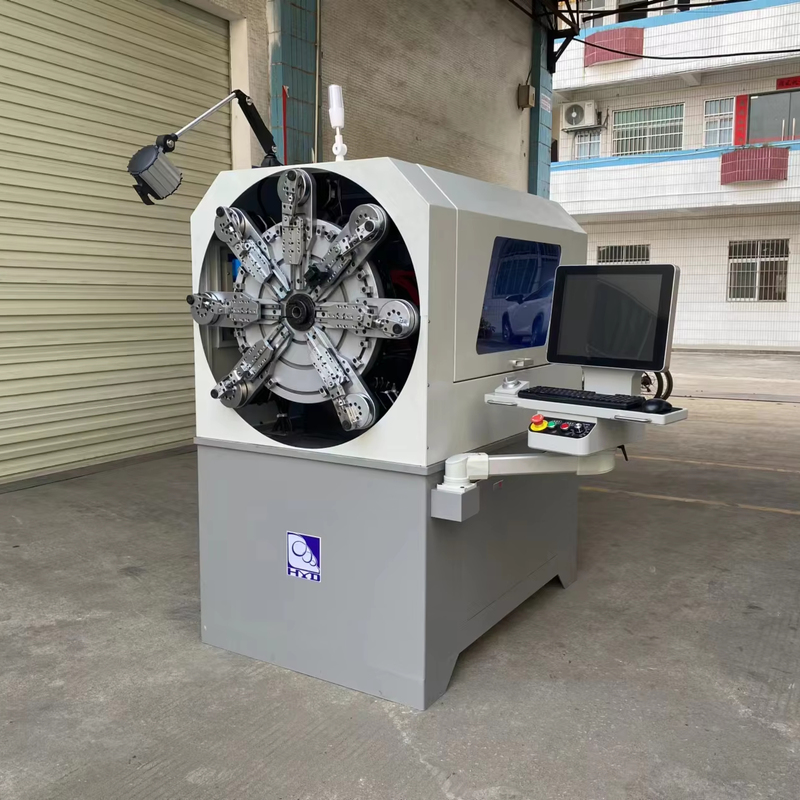

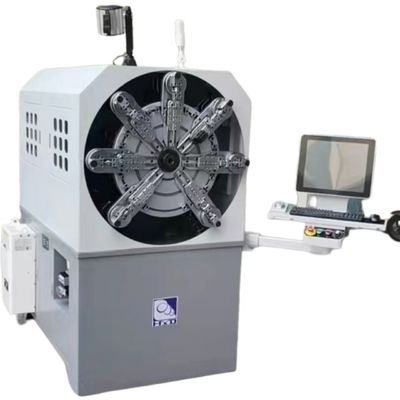

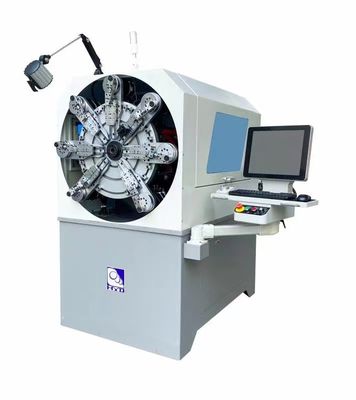

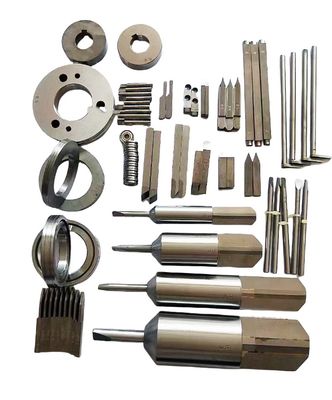

Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power 0
Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power 1
Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power 2
Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power 3
Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power 4
Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power 5
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements.
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
Q6: What is the power supply of the machine?
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q7: What is the payment term?
A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
Q8: What is the delivery time?
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
Q9: What is the guarantee period of the machine?
A9: The guarantee period is one year from the date of B/L.
Q10: What is the MOQ?
A10: One set. We will make the machine suitable for you according to your needs.
