Dongguan Hua Yi Da Spring Machinery Co., Ltd
Dongguan Hua Yi Da Spring Machinery Co., Ltd

Zusammen kommen ist ein Anfang; zusammen halten ist Fortschritt; zusammenarbeiten ist Erfolg.

Startseite Produktecnc-Frühlingsmaschine

CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling

CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling

  • CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling
  • CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling
  • CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling
  • CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling
  • CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling
  • CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling
CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: HYD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt
Ausführliche Produkt-Beschreibung
Gewicht: 1800 kg Stromspannung: 380 v
Leistung: 12 kW Drahtgröße: 1,0-3,5 mm
Servo -Motoren: 4 Achsen Max Wire Speed: 110 m/min
CAM -Revolutionsgeschwindigkeit: 0-60 U / min Außendurchmesser: Max 60 mm
Drahtrolle: 4 Paare Maximaler Fehler: ± 0,10 ~ ± 359,90
Drahtzuführmotor: 5,5 kW Nockenmotor: 5,5 kW
Kernachsemotor: 1,0 Kilowatt Maschinendimension: L1600*W1300*H1900 mm
Motormarke: SANYO
Hervorheben:

380V CNC Spring Machine

,

12kW Computer Spring Machine

,

110m/min Spring Coiling Machine

CNC Spring Making Machine with Sanyo Servo Motor 1.0-3.5mm Spring Winding
Product Overview
High-precision CNC spring making machine designed for metal and metallurgy industries, featuring Sanyo servo motors for superior performance and accuracy in spring production.
Technical Specifications
Model HYD-35T-4A
Wire Size 1.0-3.5mm
Servo Motors 4 axes
Outside Diameter Max 60mm
Wire Feed Roller 4 Pairs
Maximum Error ±0.10~±359.90
Wire Feed Speed 110m/min
Cam Revolution Speed 0~60 RPM
Control System 1SET
Decoiler 200KG
Wire Feed Motor 5.5KW
Cam Motor 5.5KW
Core Axis Motor 1.0KW
Motor Brand Sanyo
Power Supply 380V±10%V50Hz
Machine Weight 1800KG
Machine Dimensions L1600×W1300×H1900MM
Product Images

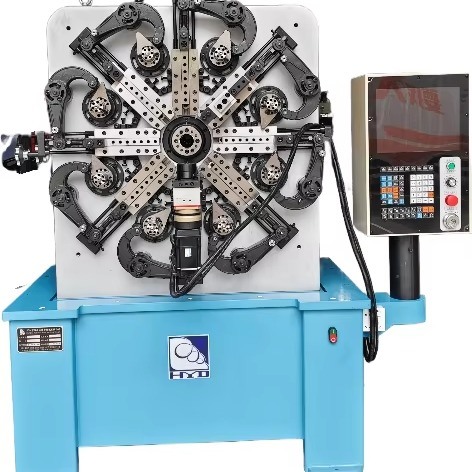

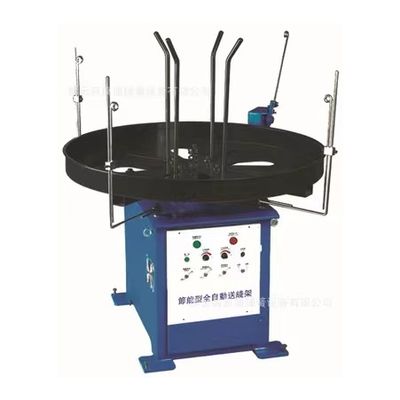

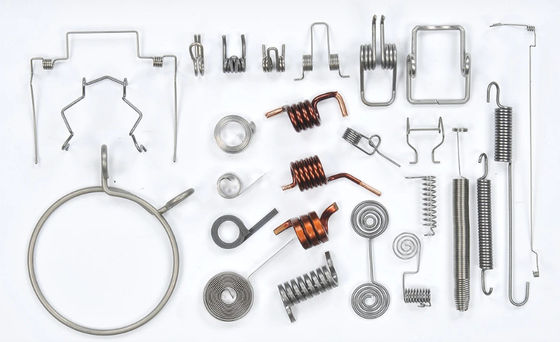

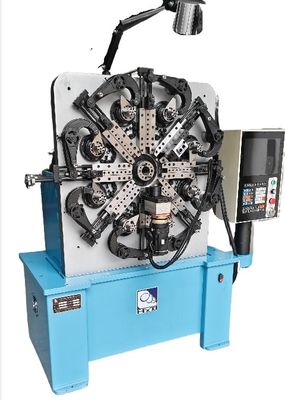

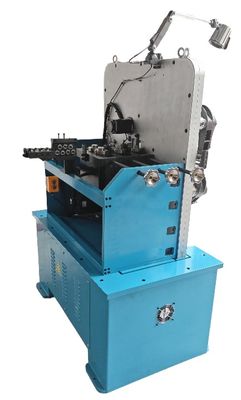

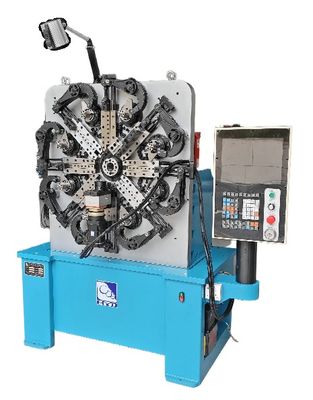

CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling 0
CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling 1
CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling 2
CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling 3
CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling 4
CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling 5
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements.
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
Q6: What is the power supply of the machine?
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q7: What is the payment term?
A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
Q8: What is the delivery time?
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
Q9: What is the guarantee period of the machine?
A9: The guarantee period is one year from the date of B/L.
Q10: What is the MOQ?
A10: One set. We will make the machine suitable for you according to your needs.
